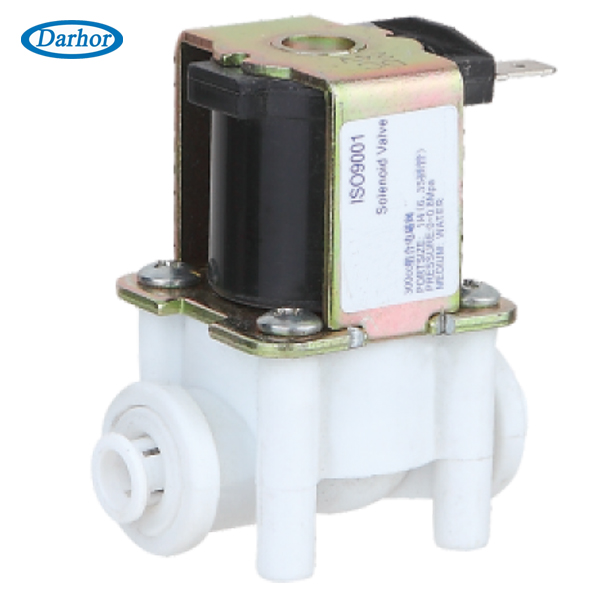

DHWS4 water solenoid valve quick connection

DHWS4 water solenoid valve quick connection


Product name:DHWS4 water solenoid valve quick connection
Item:
Details:
DHWS4 Series Direct acting, small plastic solenoid valve, 2WAY NC
Characteristic:  1.Direct acting miniature construction at low power consumption
                      2.Food class body material available for RO system, Washer, miller, etc
Medium:           Air, Water, etc
Temperature:     NBR Seal: -10℃ to 80℃
                       EPDM Seal: -10℃ to 80℃
                       VITON Seal: -10℃ to 80℃
Pressure:          DHWS4: 0 ~ 0.5 bar
Port Size:         See data below
Port Thread:      BSPP, BSPT, NPT,
Orifice (mm):     DHWS4    10mm
Voltage:           DC - 12V, 24V
                      AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
Tolerance:        +/- 10%
Coils:               Y72B, 6VA (AC), 6W (DC), IP65, 100%ED
                      AB2B, 6VA (AC), 6W (DC), IP65, 100%ED
Material:           Body – Nylon (food class), PP, POM
                       Seal -VITON, NBR, EPDM, Silicon Ruben
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop -SS430F
                       Springs - SS 304

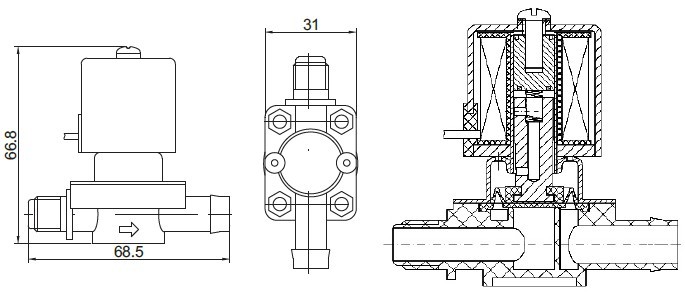

DHWS4
Media:     Water, air, oil, etc.
Media TEP:  -10℃~100℃
Body:       PP
Pre:         0-0.5 Bar
Port:        1/4″ and ¢6.35mm outer dia.
Orifice:     DN10
Seal:        Silicon Rubber
