DHWS11 Series Direct acting, small plastic solenoid valve, 2WAY NC
Characteristic: 1.Direct acting miniature construction at low power consumption
2.Food class body material available for RO system, Washer, miller, etc
Medium: Air, Water, etc
Temperature: NBR Seal: -10℃ to 80℃
EPDM Seal: -10℃ to 80℃
VITON Seal: -10℃ to 80℃
Pressure: DHWS11: 0 ~ 7 bar
Port Size: See data below
Port Thread: BSPP, BSPT, NPT,
Orifice (mm): DHWS11 2.5mm
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: Y72B, 6VA (AC), 6W (DC), IP65, 100%ED
AB2B, 6VA (AC), 6W (DC), IP65, 100%ED
Material: Body – Nylon (food class), PP, POM
Seal -VITON, NBR, EPDM, Silicon Ruben
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304

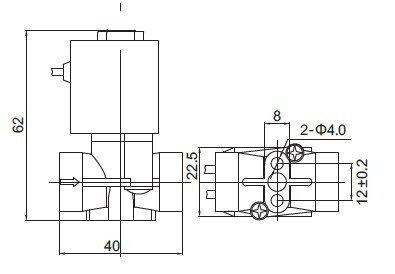

DHWS11
Media: Water, air, oil, hot water, etc.
Media TEP: -10℃~80℃
Body: PP
Pre: 0-7.0 Bar
Port: NPT1/4″
Orifice: DN2.5
Seal: NBR, EPDM, VITON
|
