DHWS10 Series Small diaphragm plastic solenoid valve,2WAY NC
Characteristic: 1.Direct acting miniature construction at low power consumption
2.Food class body material available for RO system, Washer, miller, etc
Medium: Air, Water, etc
Temperature: NBR Seal: 14F to 176F, -10 to 80
Silicon Rubber Seal: -10℃ to 80℃
Pressure: DHWS10: 0 ~ 7 bar
Port Size: See data below
Port Thread: BSPP, BSPT, NPT
Orifice (mm): 10mm
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
Tolerance: +/- 10%
Coils : SA41B，6VA(AC),6W(DC),IP65,100%ED
Material: Body – Nylon (food class)
Seal -VITON, NBR, EPDM
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304

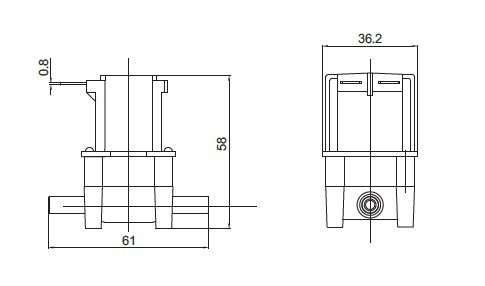

DHWS10-05
Media: Water, air, oil, etc.
Media TEP: -10℃ to 80℃
Body: POM
Pre: 0-8.0 Bar
Port: φ6.35mm outer dia.
Orifice: DN10
Seal: NBR, Silicon rubber
|
Direct acting solenoid valve
