DHWS3 water solenoid valve quick connection

DHWS3 water solenoid valve quick connection


Product name:DHWS3 water solenoid valve quick connection
Item:
Details:
DHWS3 Series Direct acting, small plastic solenoid valve, 2WAY N/C
Characteristic:  1.Direct acting miniature construction at low power consumption
                     2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc
Temperature:     NBR Seal: -10℃ to 80℃
                       EPDM Seal: -10℃ to 80℃
                       VITON Seal: -10℃ to 80℃
Pressure:           DHWS3: 0 ~ 7 bar
Port Size:           See data below
Port Thread:       BSPP, BSPT, NPT,
Orifice (mm):      DHWS3    2.5mm
Voltage:            DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:        +/- 10%
Coils:               Y72B, 6VA (AC), 6W (DC), IP65, 100%ED
                      AB2B, 6VA (AC), 6W (DC), IP65, 100%ED
Material:          Body – Nylon (food class), PP, POM
                      Seal -VITON, NBR, EPDM, Silicon Ruben
                      Armature Tube - Stainless Steel 304
                      Plunger - Stainless Steel 430F
                      Stop -SS430F
                      Springs - SS 304

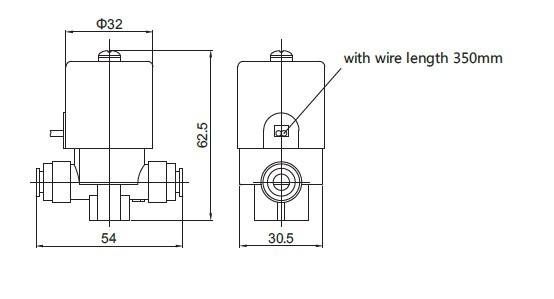

DHWS3
Media:   Water, air, oil, etc.
Media    TEP: -10℃~80℃
Body:     POM
Pre:       0-7.0 Bar
Port:      PE pipe with ¢6.35mm outer dia.
Orifice:   DN2.5
Seal:      NBR, EPDM, VITON
