DHWS10-01C-KP1N(300CC) plastic solenoid valve

DHWS10-01C-KP1N(300CC) plastic solenoid valve


Product name:DHWS10-01C-KP1N(300CC) plastic solenoid valve
Item:
Details:
DHWS10 Series Small diaphragm plastic solenoid valve
2WAY NC

Characteristic:   1.Direct acting miniature construction at low power consumption
                       2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc.
Temperature:    NBR Seal: 14F to 176F, -10 to 80
                      Silicon Rubber Seal: -10℃ to 80℃
Pressure:          DHWS10: 0 ~ 7 bar
DHWA10-04:     0 ~ 5 bar
Port Size:          See data below
Port Thread:      BSPP, BSPT, NPT
Orifice (mm):     10mm
Voltage:            DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
Tolerance:         +/- 10%
Coils :               SA41B,6VA(AC),6W(DC),IP65,100%ED
Material:            Body – Nylon (food class)
                        Seal -VITON, NBR, EPDM
                        Armature Tube - Stainless Steel 304
                        Plunger - Stainless Steel 430F
                        Stop -SS430F
                        Springs - SS 304

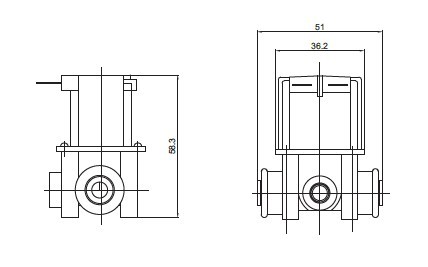

DHWS10-01C-KP1N(300CC)
Media:        Water, air, oil, etc.
Media TEP: -10℃ to 80℃
Body:          POM
Pre:            0-8.0 Bar
Port:           PE pipe with φ6.35mm outer dia.
Orifice:        DN10
Seal:           NBR, Silicon rubber
