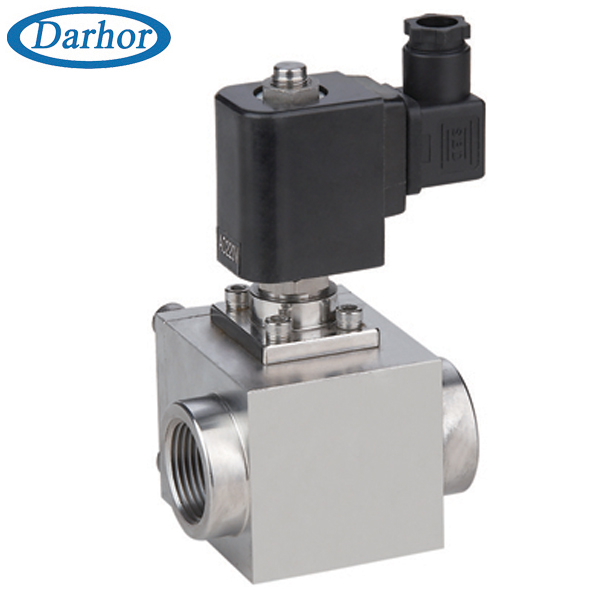

DHH12 Normally open high pressure solenoid valve

DHH12 Normally open high pressure solenoid valve


Product name:DHH12 Normally open high pressure solenoid valve
Item:
Details:

Characteristic :  1.High pressure solenoid valve with Pilot operated diaphragm construction  for compress air machine, injecting plastic machine



                           2.With PARKER seals to improve the quality



Medium :           Hot Water, Compresses Air,
                        Water, Oil, <20CST,GAS>
Temperature:     VITON Seal : 14F to 300F, -10 to 150
Pressure:           DHH12:  0.03Mpa ~ 5.0Mpa
Port Size:           3/8",1/2"
Port Thread:      BSPP ,BSPT ,NPT ,FLANGE
Orifice (mm):    12,15
Voltage:            DC - 12V,24V
                        AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ
Tolerance:         +/- 10%
Coils :               S91H, 17VA(AC), 9W(DC), IP65,100%ED
                        NASS COIL 0543 on request
Material:            Body - Brass /SUS304
                        Seal PU/VITON
                        Armature Tube - Stainless Steel 304
                        Plunger - Stainless Steel 430F
                        Stop -SS430F
                        Springs - SS 304
                        Shading Rings - Stainless Steel 304



DHH12 Normally Open , with Coil  S91H



Port Size



Orifice



Cv



Min Pressure



Max Pressure



Seals
Material



Body
Material



Valve Body



Coil



AC(17VA)



DC(10W)



3/8"



12



4.5



0.03MPa



5.0MPa



5.0MPa



PU/VITON



Brass



DHH1212XXX



S91H



1/2"



15



4.5



0.03MPa



5.0MPa



5.0MPa



DHH1215XXX



S91H
