DHH31 Series High Pressure Diaphragm Pilot Operated, Normally Closed
Characteristic: 1. High pressure solenoid valve with Pilot operated diaphragm construction for compress air machine, injecting plastic machine
2. With PARKER seals to improve the quality
Medium: Hot Water, Compresses Air, Water, Oil, <20CST, GAS>
Temperature: PET: -40℃ to 200℃
Pressure: DHH31: 0 ~ 250 bar

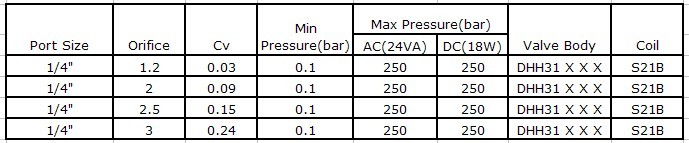

Port Size: 1/4", 3/8"
Port Thread: BSPP, BSPT, NPT
Orifice (mm): 1.2, 2.0, 2.5, 3.0
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: S21B, 24VA (AC), 18W (DC), IP65, 100%ED
NASS COIL 0543 on request
Material: Body - Brass /SUS304
Seal PET
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
DHH31 Normally Closed, with Coil S21B
|
Direct acting solenoid valve
