5503-02 coffee machine solenoid valve

5503-02 coffee machine solenoid valve


Product name:5503-02 coffee machine solenoid valve
Item:
Details:
55XX Series Direct Acting Solenoid Valve,
2WAY/3WAY SMALL HOME APPLIANCES VALVE

Characteristic: 1.Direct acting miniature construction at low power consumption
                      2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                      3.Applied to low pressure system, open from 0 bar
Medium:         Air, Water, Steam, Oil, etc
Temperature:  NBR: -10℃ to 80℃
                     VITON: -10℃ to 150℃
Pressure:        55 series: 0 ~ 20 bar
Port Size:        1/8" and other
Port Thread:     BSPP, BSPT, NPT
Orifice (mm):    1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:           DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:        +/- 10%
Coils:               SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:           Body - Brass
                        Seal -VITON,NBR,EPDM
                        Armature Tube - Stainless Steel 304
                        Plunger - Stainless Steel 430F
                        Stop - SS430F
                        Springs - SS 304
                        Shading Rings - Stainless Steel 304

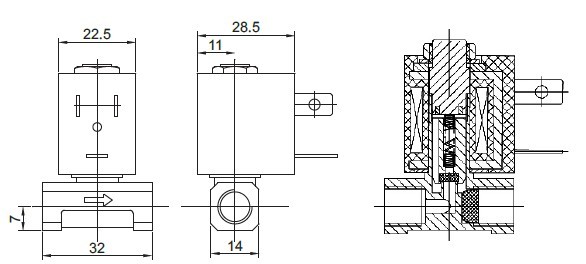

5503-02
Media:        Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:          Brass
Pre:              0 – 6.0 Bar
Port:             G1/8″ or NPT 1/8″
Orifice:         DN2.0, 2.8
Seal:             VITON







     [Next]     [ Back ]
