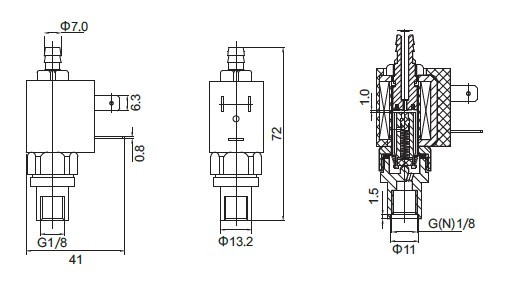

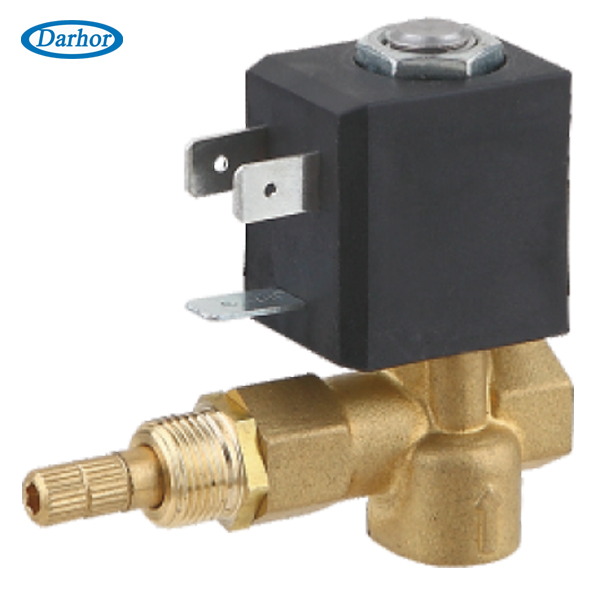

5515-10(2) Coffee machine solenoid valve

55XX Series Direct Acting Solenoid Valve, 2WAY SMALL HOME APPLIANCES VALVE
Characteristic:  1.Direct acting miniature construction at low power consumption
                       2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                       3.Applied to low pressure system, open from 0 bar
Medium:          Air, Water, Steam, Oil, etc
Temperature:   NBR: -10℃ to 80℃
                      VITON: -10℃ to 150℃
Pressure:        55 series: 0 ~ 20 bar
Port Size:      1/8" and other
Port Thread:    BSPP, BSPT, NPT
Orifice (mm):   1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:          DC - 12V, 24V
                      AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:       +/- 10%
Coils:             SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:         Body - Brass
                     Seal -VITON,NBR,EPDM
                     Armature Tube - Stainless Steel 304
                     Plunger - Stainless Steel 430F
                     Stop - SS430F
                     Springs - SS 304
                     Shading Rings - Stainless Steel 304

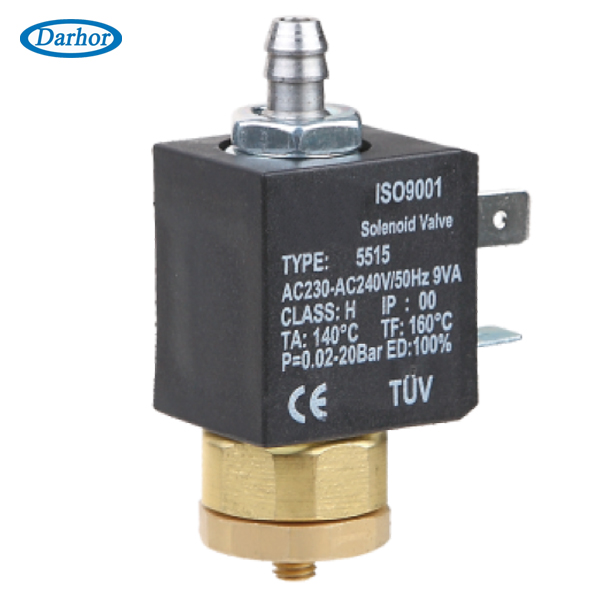

5515-10(2)
Media:         Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:           Brass
Pre:              0 – 20.0 Bar
Port:            M5
Orifice:        DN 1.5
Seal:           VITON
