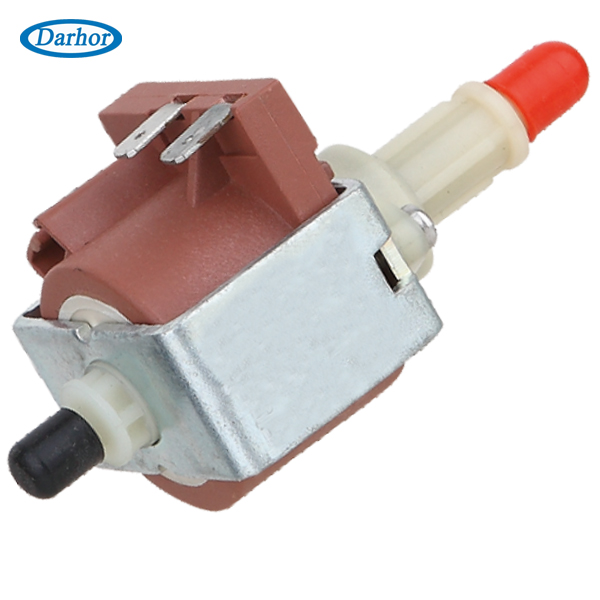

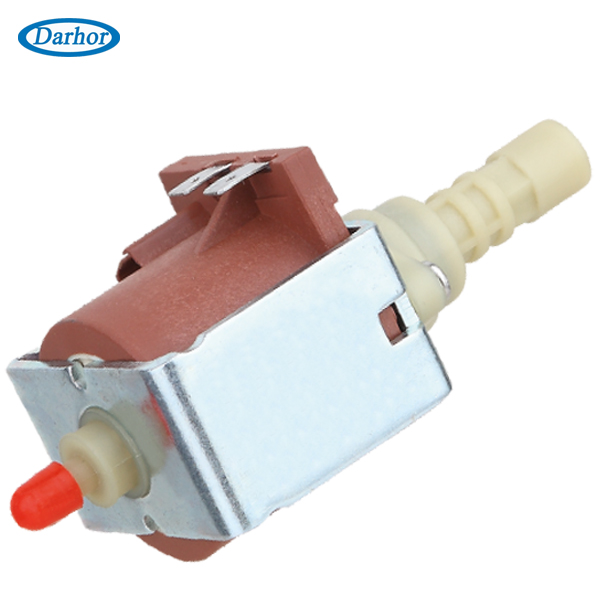

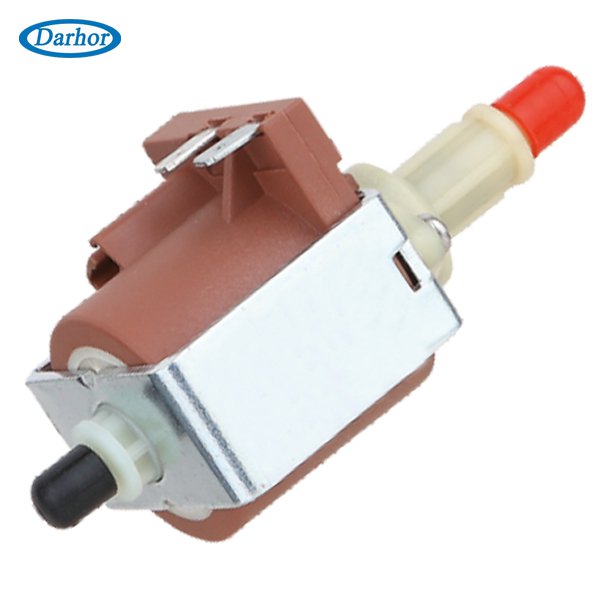

DHSP Series Solenoid Pump
Product Information
Pump Type: Solenoid (Piston) Pump
Insulation: Class H
Connection: Inlet Φ5.0, OutletΦ6.5
Approval: VDE, ETL, CQC
Performance Specifications
Coil Data
DHSP-E: 220~240VAC, 50Hz, 16W
DHSP-U: 120VAC, 60Hz, 16W
DHSP-J: 100VAC, 50/60Hz, 16W
Ideal fluid: Water at 25 degree
Ambient temperature: 45 degree
Flow rate at 0 bar: 50-200cc/min
Pressure: 0 bar < P < 2.5 Bar
Suitable to dry-use only during priming
Laboratory test condition: ED: 100%, Ta: 40℃, Tf: 35℃
Ta: Ambient temperature
Tf: Temperature of fluid water
Applications
1. Steam iron
2. Steam cleaning machine
3. Steam generator
4. Stage smoke machine
5. Espresso coffee machine
6. Medical device
7. Floor care machine
Specifications
Item
|
Flow rate
(cc/min)
|
Max pressure
(Bar)
|
Noise
(DBA 20cm)
|
Power rate
(W)
|
△T(℃)≤
|
Working mode
|
Passed certification
|
Coil with diode in it
Noise is tested for a
distance of 20 cm.
|
SP-01025
|
50
|
2.5
|
50
|
16
|
115
|
ED: 100%
|
VED&ETL
+CETL+CQC
|
SP-02025
|
100
|
2.5
|
50
|
16
|
115
|
SP-03025
|
150
|
2.5
|
50
|
16
|
115
|
SP-04025
|
200
|
2.5
|
50
|
16
|
115
|
