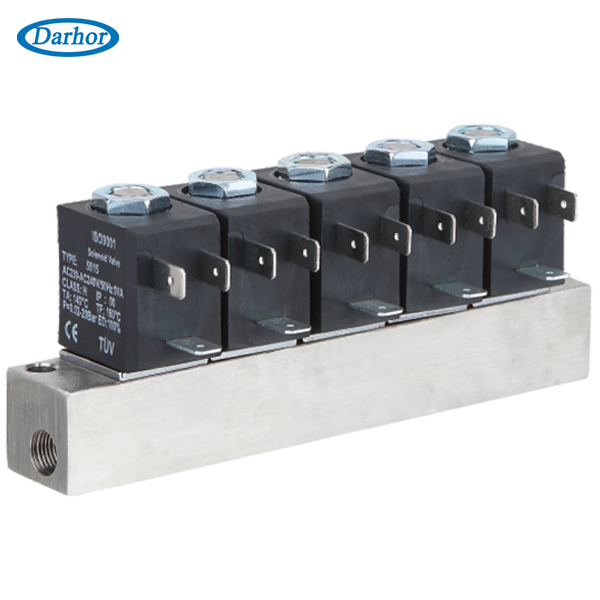

DHZ21 Series Normally closed, Manifold Solenoid Valve
Characteristic: 1. Direct acting with compact design
2. Threaded port and sub-base connection
3. High cycling rate and low temperature rising
Medium: Neutral gas and fluids
Temperature: NBR Seal: -10℃ to 80℃
EPDM Seal: -10℃ to 120℃
VITON Seal: -10℃ to 150℃
Pressure: DHZ21: 0 ~10 bar
Port Size: 1/8″
Port Thread: BSPP, BSPT, NPT, Flange, UNF
Orifice (mm): 1.6, 2.0, 2.5, 3.0
Voltage: DC-12V, 24V
AC- 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: SA11B, 9VA (AC), 8W (DC), IP65 100%ED
Material: Body- Brass or Stainless steel
Sub-base-Aluminum or SUS304
Seal-Silicon Rubber
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- SS430F
Spring- SS 304
Shading Rings- Stainless Steel 304
DHZ21 Series, with Coil SA11B
Port Size
|
Orifice
|
Cv
|
Min Pressure(bar)
|
Max Pressure(bar)
|
Valve Body
|
Coil
|
AC(9VA)
|
DC(8W)
|
1/8"
|
1.6
|
0.11
|
0
|
16
|
16
|
DHZ21161X X X
|
SA11B
|
1/8"
|
2.5
|
0.18
|
0
|
12
|
12
|
DHZ21251X X X
|
SA11B
|
1/8"
|
3
|
0.3
|
0
|
10
|
10
|
DHZ21301X X X
|
SA11B
|
|
