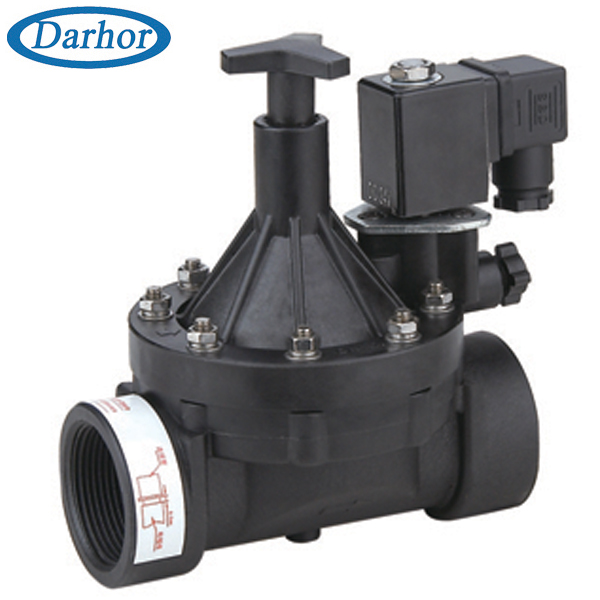

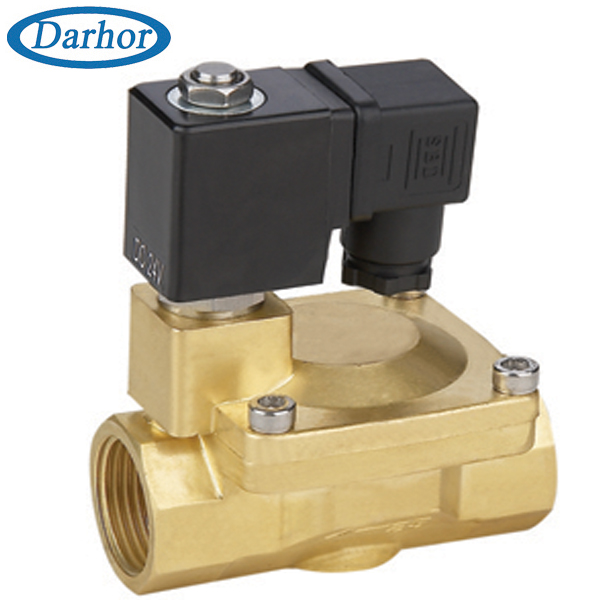

DHL11 Series Direct acting, pilot operating diaphragm structure
Characteristic: 1.With latching coil at low power consumption
2.Applied to washroom, public W.C. etc.
3.Lifespan can be at 1 million cycles.
Medium: Water
Temperature: NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
Pressure: DHL11: 0.3 ~ 10 bar
Port Size: 3/8", 1/2", 3/4", 1', 11/4', 11/2', 2'
Port Thread: G, BSPT, NPT, Flange
Orifice (mm): 15, 20, 25, 32, 40, 50
Voltage: DC - 6V, 12V, 24V
Coils: L11B, 2W (DC), IP65 100%ED
Material: Body - Brass or stainless steel
Seal -NBR, EPDM or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
DHL11 Series Pilot Operating, with Coil L11B
Port Size
|
Orifice
|
Cv
|
Min Pressure(bar)
|
Max Pressure(bar)
|
Valve Body
|
Coil
|
DC(2W)
|
3/8"
|
12
|
4.5
|
0.3
|
10
|
DHL1112 X X X
|
L11B
|
1/2"
|
15
|
4.5
|
0.3
|
10
|
DHL1115 X X X
|
L11B
|
3/4"
|
20
|
9.3
|
0.3
|
10
|
DHL1120 X X X
|
L11B
|
1"
|
25
|
12
|
0.3
|
10
|
DHL1125 X X X
|
L11B
|
1 1/4"
|
32
|
24
|
0.3
|
10
|
DHL1132 X X X
|
L11B
|
1 1/2"
|
40
|
29
|
0.3
|
10
|
DHL1140 X X X
|
L11B
|
2"
|
50
|
48
|
0.3
|
10
|
DHL1150 X X X
|
L11B
|
|
