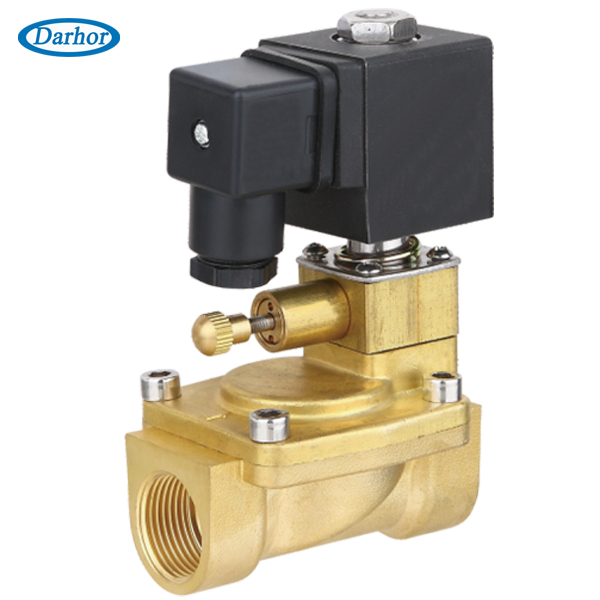

DHXF fire fighting solenoid valve

DHXF fire fighting solenoid valve


Product name:DHXF fire fighting solenoid valve
Item:
Details:

Detailed Product Description

Characteristic: 1.With manual override to shut off the solenoid valve

                     2. The solenoid valve maintains open when de-energized

                     3. Applied to fire fighting system

Medium:          Water

Temperature:   NBR Seal: -10℃ to 80℃

                     EPDM Seal: -10 to 120℃

                     VITON Seal: -10℃ to 150℃

Pressure:         DHXF: 0.5 ~ 16 bar

Port Size:         3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Port Thread:     BSPP, BSPT, NPT, Flange, UNF

Orifice (mm):    12, 15, 20, 25, 32, 40, 50

Voltage:           DC - 12V, 24V

                      AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:        +/- 10%

Coils:               S21B, 20VA (AC), 18W (DC), IP65 100%ED

Material:     Body - Brass or stainless steel

                 Seal -NBR, EPDM, PTFE or VITON

                 Armature Tube - Stainless Steel 304

                 Plunger - Stainless Steel 430F

                 Stop -SS430F

                 Springs - SS 304

                 Shading Rings - Stainless Steel 304

DHXF Normally Closed, with Coil S21B, DIN



Port Size



Orifice



Cv



Min Pressure



(bar)



Max Pressure(bar)



Valve Body



Coil



AC(22VA)



DC(15W)



3/8"



12



4.5



0.5



16



16



DHXF12X X X



S21B



1/2"



15



4.5



0.5



16



16



DHXF15X X X



S21B



3/4"



20



9.3



0.5



16



16



DHXF20X X X



S21B



1"



25



12



0.5



16



16



DHXF25X X X



S21B



1 1/4""



32



24



0.5



16



16



DHXF32X X X



S21B



1 1/2"



40



29



0.5



16



16



DHXF40X X X



S21B



2"



50



48



0.5



16



16



DHXF50X X X

S21B
