55XX Series Direct Acting Solenoid Valve, 2WAY/3WAY SMALL HOME APPLIANCES VALVE
Characteristic : 1.Direct acting miniature construction at low power consumption
2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
3.Applied to low pressure system, open from 0 bar
Medium: Air, Water, Steam, Oil, etc
Temperature: NBR: -10℃ to 80℃
VITON: -10℃ to 150℃
Pressure: 55 series: 0 ~ 20 bar
Port Size: 1/8" and other
Port Thread: BSPP, BSPT, NPT
Orifice (mm): 1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material: Body - Brass
Seal -VITON,NBR,EPDM
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop - SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304

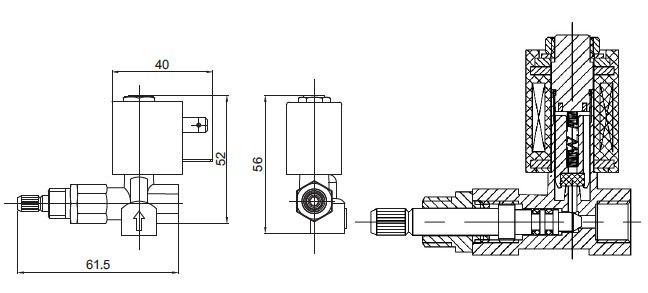

5531-04
Media: Gas, etc.
Media TEP: -10℃ - 150℃
Body: Brass
Pre: 0 – 6.0 Bar
Port: G1/8″ or NPT 1.8″
Orifice: DN 2.0
Seal: VITON
|
Direct acting solenoid valve
