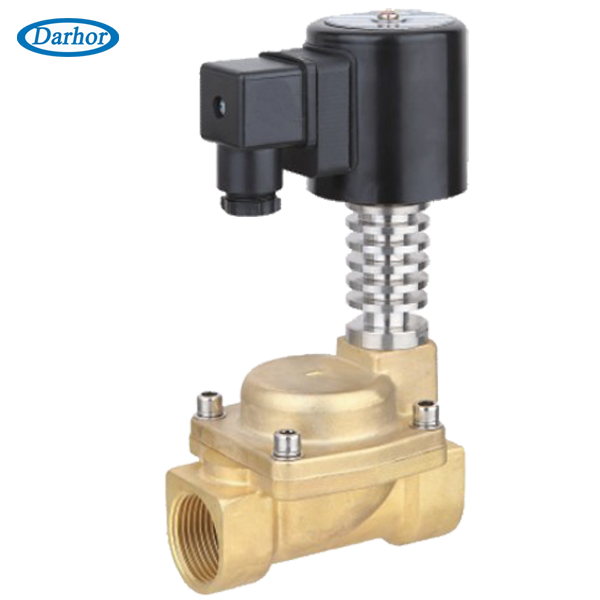

DHSP high temperature solenoid valve

Model

DHSP-15

DHSP-20

DHSP-25

DHSP-32

DHSP-40

DHSP-50

G Connection

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

Orifice Size

mm

15

20

25

32

40

50

Cv Value

4.5

7.6

12

22

30

48

L

mm

75

75

92

110

122

161

H

mm

135

142

150

150

155

174

H1

mm

112

117

138

138

140

152

Medium temperature

-5 ~180

Pressure

bar

Normally Closed: 0.4 ~ 16;     Normally Open: 0.4 ~ 12

Power

AC:220V~AC:230V/50-60HZ   22VA;  AC110 ~AC:120V/50-60HZ  20VA;  DC24  28 W;  DC12    28W ;  Range:±10%
